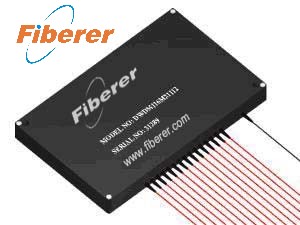

32 Channel DWDM -100ghz

(985 pcs purchased)

Features		Applications
100GHz ITU Channel Spacing Low Insertion Loss Wide Pass Band High Channel Isolation High Stability and Reliability Epoxy Free Optical Path		Channel Add / Drop DWDM Network Wavelength Routing Fiber Optical Amplifier CATV Fiberoptic System

Fiberer’s 100GHz dense wavelength division multiplexer (DWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path. It can be used for wavelength add/drop in telecommunication network system. All Fiberer’ products are Telcordia qualification tested.

Performance Specifications

Parameter		Mux	Demux
Channel Wavelength (nm)		ITU 100 GHz Grid
Center Wavelength Accuracy (nm)		± 0.05
Minimum Channel Spacing (GHz)		100(0.8nm)
Channel Passband (@-0.5dB bandwidth) (nm)		> 0.22
Insertion Loss (dB)		< 5.4
Uniformity(dB)		<2.0
Channel Ripple (dB)		< 0.3
Isolation @Add/Drop Channel (dB)	Adjacent	N/A	> 25
	Non-adjacent	N/A	> 35
Insertion Loss Temperature Sensitivity (dB/^°C )		< 0.005
Wavelength Temperature Shifting (nm/^°C )		< 0.002
Polarization Dependent Loss (dB)		< 0.15
Polarization Mode Dispersion (ps)		< 0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Power Handling (mW)		300
Operating Temperature (^°C)		0 ~ +70
Storage Temperature (^°C)		-40 ~ +85
Dimensions (mm)		L150xW95xH25

DWDM

	Channel Spacing	Number of Channel	Configuration	1st ITU Channel	Pigtail Style	Fiber Length
	1=100GHz	32=32 Channel	M=Mux D=Demux	C21=1560.61nm C22=1559.79nm C23=1558.98nm	1=Bare Fiber 2=900um Jacket 3=3mm Cable	1=1m 2=2m
