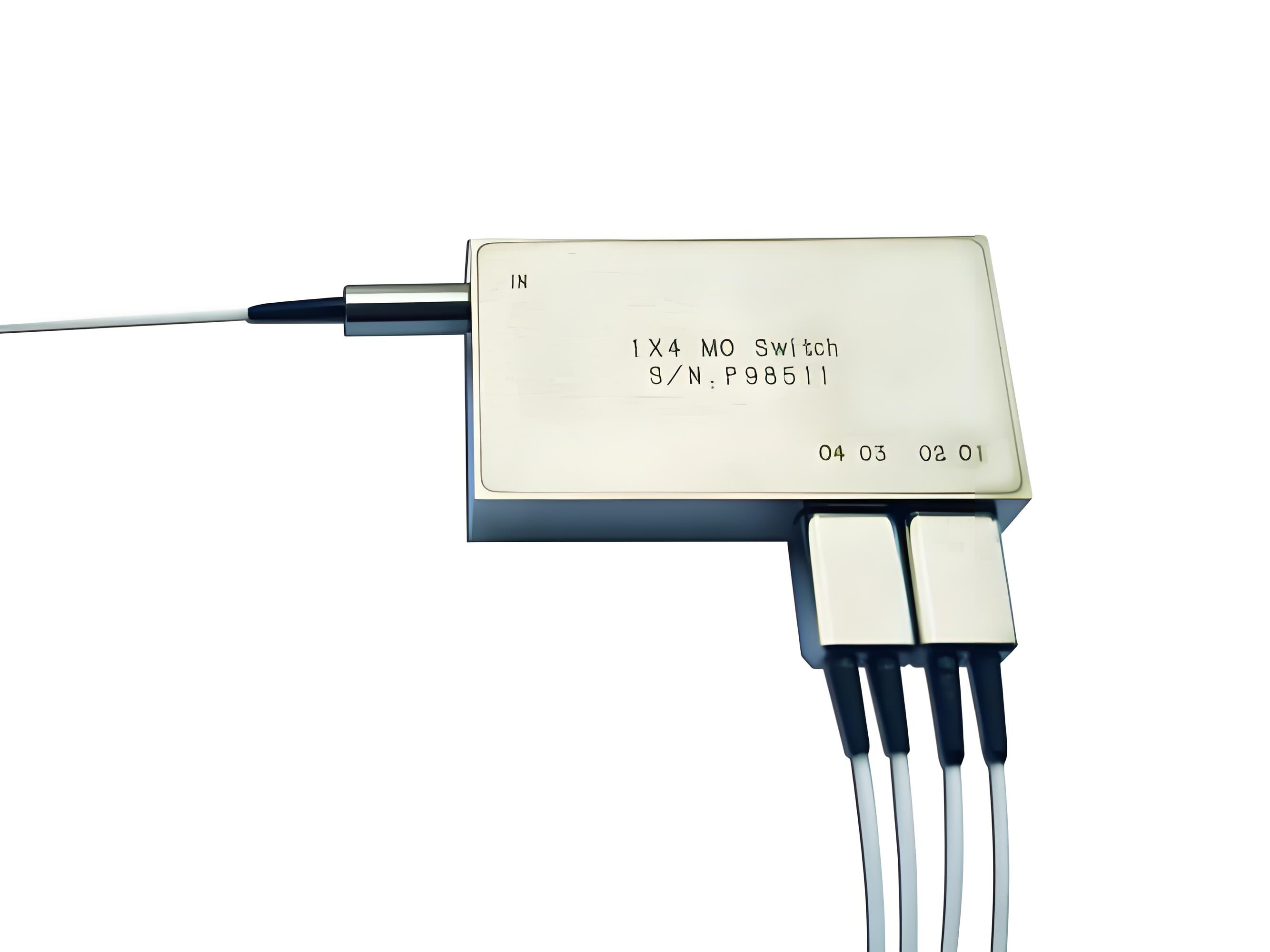

1×4 PM Solid-State Fiberoptic Switch

Product Details

Product Description

The μs-series 1×4 solid-state fiber optical switch connects optical channels by redirecting an incoming optical signal into a selected output optical fiber. The switching of the optical light is realized by utilizing Faraday Effect.

This is achieved using a patent protected non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement. The μs-series fiber optic switch is designed to meet the most demanding switching requirements of reliability, durability, response, and continuous high frequency switching operation.

Specifications

Item	Unit	Parameters	Notes
Item	Unit	Bidirectional	Notes
Wavelength Range	nm	1525 ~ 1565
Insertion Loss	dB	1.2 (Typ.); 1.8 (Max.)
PDL	dB	0.2 (Typ.); 0.3(Max.)
Return Loss	dB	≥50（Typ.55）
Crosstalk	dB	≥40（Typ.50）
ER	dB	≥18（Typ.20, Max 25）
PMD	ps	0.2
Repeatability	dB	+/- 0.01
Durability	cycles	> 30 Billions
Switching Speed	μs	200 ~ 400
Switch Type		Latching
Operating Temperature	°C	-5 ~ 70
Storage Temperature	°C	-40 ~ 85
Maximum Optical Power	mW	500
Dimension( L×W×H )	mm	41X21X7.5

*. All the specifications are based on the devices without connector, and guaranteed over wavelength, polarization and temperature.

**. Specifications are subject to change without notice.

Electrical Specifications

Parameter	Specification	Unit
Switching Speed	200~400	μs
Switching Voltage(VCC)	2.5 (+/-5%)	V
Switching Current	< 200	mA
Pulse Width(typical)	0.3	ms
Claim Frequency	2000	Hz

Each switching point is actuated by applying a voltage pulse. Applying one polarity pulse, one light path will be connected and latched to the position. Applying a reversed polarity pulse, another light path will be connected and latched to the position after pulse removed.

Mechanical Dimensions (mm)

Bidirectional series 1X4 or 4X1 Pin Definition
