1250nm-1650nm ASE Light Source

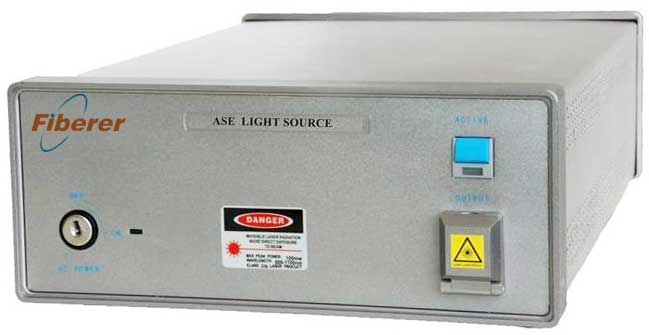

1480-2000nm ASE Broadband Light Source (above)
Description:
1480-2000nm Broadband ASE Light Source, operating wavelength range 1480-2000nm, output power 10-30 dBm, power spectral density ≥1 mW/nm. Other working wavelength ranges are available like 1240-1660nm, 1260-1630nm, 1250-1650nm, 1260-1720nm, 1220-1700nm, etc. OEM model is well available on customer’s special request.
Applications:
White Light Interferometry
Optical Component Test
Fiber and Grating characterization
Optical coherence tomography (OCT)
Biomedical applications
ASE-Alternative
Features:
Continuous Ultra-Broadband Light Source
Spectral Range: 1480-2000 nm
Total Output Power up to 1 Watt
Turn-key Solution
Cost Effective
A Single Fiber Output
Specifications:
Parameters | |
Operating wavelength (nm) | 1480-2000, 1240-1660, 1260-1630, 1250-1650, etc |
Output power (dBm) | 10~30 |
Power Spectral density (mW/nm) | ≥1 |
Power spectral density stability (dB) | ≤±0.2 (5 min) |
Output power short-term stability (dB) 1 | ≤±0.2 (5 min) |
Output power long-term stability (dB) 2 | ≤±0.4 (8 hour) |
Pigtail fiber | SMF-28 |
Connector type | FC/PC, FC/UPC or FC/APC, etc |
Operating temperature (℃) | 10 ~ +30 |
Storage temperature (℃) | 5 ~ +45 |
Relative humidity (%) | 20~80 |
Power Supply | 110/220V AC, +5V DC; >500 mA; △V＜1% |
Maximal Power Consumption (W) | 30 |
Dimensions (L×W×H, mm) | 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.
Typical Spectrum
Ordering Information
ASE-EB | Package Type | Operating Wavelength | Power Spectral Density | Connector |
| D=Desk-top etc | 1=1480-2000nm 2=1240-1660nm 3=1260-1630nm 4=1250-1650nm etc | 30=-30dBm/nm 25=-25dBm/nm 20=-20dBm/nm etc | FC/UPC FC/APC etc |
