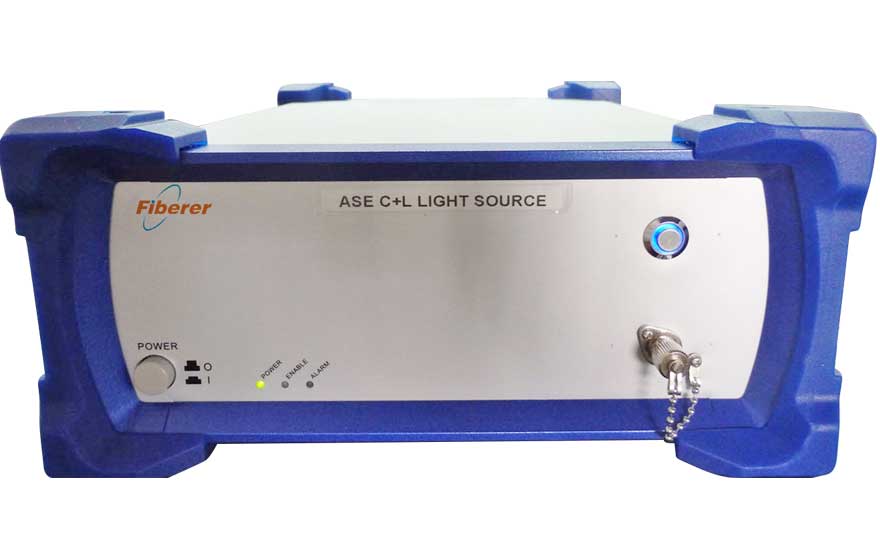

ASE C+L and 1550nm DFB Light Source (above)
1550nm DFB and ASE E+S+C+L Band Broadband Light Source (above)
Description:
ASE C+L Band Broadband Light Source, Operating wavelength range 1525-1607nm without GFF flatness with Output power 10-21 dBm, and 1528-1600nm with GFF flatness with Output power 7-17 dBm. Power spectral density (PSD) -17 dBm/nm, Degree of Polarization (DOP)5%. OEM model is well available on customers special request.
Applications:
Optical fiber sensing
PLC, CWDM, DWDM, Film testing
Optical fiber grating testing
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)
Features:
High output power
High spectral stability
Broadband spectrum
Low noise
Low polarization and low coherent
Specifications:
Typical Spectrum
Without GFF at 10 dB Flatness (above)
Without GFF at 6 dB Flatness (above)
Ordering Information
ASE-C+L | Package Type | GFF | Output Power | Fiber Type | Connector |
�� | M=Module D=Desk-top | G=With GFF N=Without GFF | 10=10mW 20=20mW etc | S=SM Fiber P=PM Fiber | FC/UPC FC/APC |
