Faraday Mirror

Product Details

Fiberer’s FRDMR Series is a fiber optic polarization rotation mirror designed for fiber optic networks and measurement applications. the device can help to eliminate polarization sensitivity of an optical fiber system. Applications include eliminating polarization induced fluctuations in fiber interferometers, Brillouin amplifier systems, fiber laser systems, and fiber optic antenna remoting systems. FRDMR Series Faraday Mirror is optical path epoxy free and thus offers low insertion loss and high temperature stability.

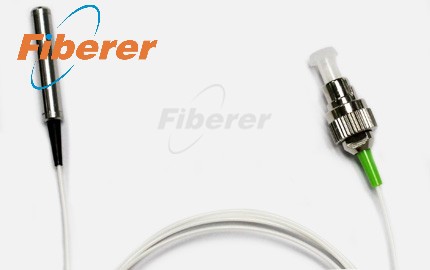

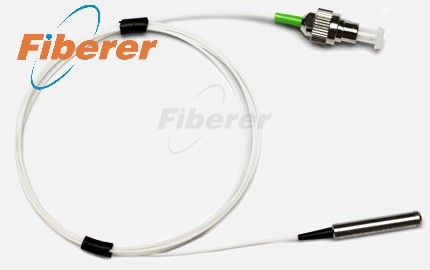

1550nm Faraday Mirror Low Insertion Loss Faraday Mirror

Performance SpecificationsParameterSpecificationCenter Wavelength (nm)1310, 1480, or 1550Min. Bandwidth (nm)30Typical Insertion Loss (dB)0.4Max. Insertion Loss (dB)0.6Faraday Rotation Angle (Single Pass)45°Rotation Angle Tolerance over Wavelength and Temperature0.5°Max. PDL (dB)0.05Max. PMD (ps)0.05Max. Optical Power (mW)300Max. Tensile Load (N)5Operation Temperature (°C )-5 ~ +70Storage Temperature(°C)-40 ~ +85Dimensions (mm)4.5x25

Package Dimensions

Note:The dimension may change without notice.

Ordering InformationFRDMR Center WavelengthPigtail StyleFiber LengthIn/Out Connector13=1310nm14=1480nm15=1550nm1=Bare Fiber2=900um jacket1=1mS=Specify0=None1=FC/APC2=FC/PC3=SC/APC4=SC/PC5=ST6=LC

Packaging & Labeling

To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment

All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM

Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.
