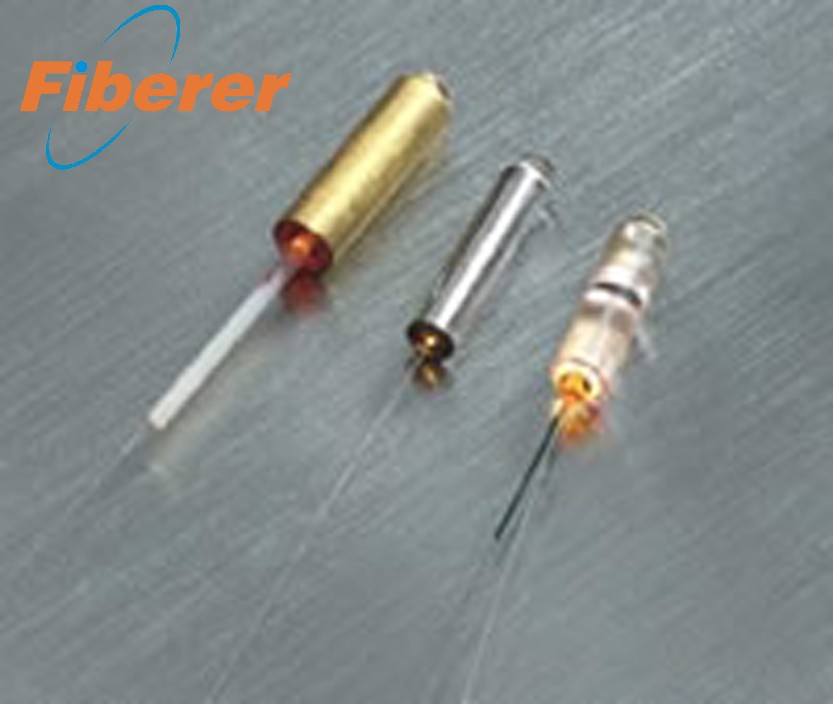

Performance Specifications GradePremiumA GradeWavelength (nm)1310+30, 1550+30 or 1310/1550+30, 980/1550+30 or custom wavelengthInsertion Loss (Typ.) (dB)0.30.4Insertion Loss (Max.) (dB)0.40.5Return Loss (Typ.) (dB)6560Beam diameter (mm)<0.5Operating Temperature (° C)-20 ~ +75Storage Temperature (° C)-40 ~ +85Dimensions (mm)2.40x10 or 3.2x10 gold plated SS tube or 2.78x10 glass tube or custom sizeFiber Type250um bare fiber or 900um jacket Ordering Information TypeCollimatorWavelengthGradeWorking Dist.Pigtail Style2=Dual FiberCL=Collimator13=1310nm15=1550nm35=1310/1550nm 95=980/1550nmP=PremiumA=A Grade01=1mm RWD06=6mm RWD........70=70mm RWDB=250um Bare FiberL=900um JacketFiber LengthPackageFiber TypeConnectorA=1.0mB=1.5mC=2.0mS=Custom LengthB=3.2x10mm SS tubeC=2.4x10mm SS tubeD=2.78x10mm glass tube0=SMF-281=Corning Flexcore2=50/125μm3=62.5/125μm4=100/140μm0=None1=FC/APC2=FC/PC3=SC/APC4=SC/PC5=ST6=LC |
